Project 2 - Moving JetAuto in Gazebo

Seneca Polytechnic
AIG240 Robotics for Software Engineers

Due: Sunday, June 15, 2025 at 11:59 PM on Blackboard
Weight: 10%

Introduction

In this project, you will demonstrate your achievement in setting up a ROS1 environment and creating a simple node to control a robot using Gazebo.

Objectives

  1. Set up the Gazebo environment to work with ROS.
  2. Create a simple ROS node to control a robot in Gazebo.
  3. Answer assessment questions.

NOTE: This project must be completed individually.

Step 1: Set Up Your Gazebo Environment

  1. Install Gazebo as per the Lab 4 instructions.
  2. Create your new ROS workspace (or use the same one) as per the Lab 3 instructions.

Step 2: Create and Run a Simple ROS Node

Use open-source code, AI-generated code, or your own code to create a control script as described below to make the JetAuto robot move according to a pattern in Gazebo.

Write code that will move the JetAuto robot in a roughly 1-meter square shape pattern as follows:

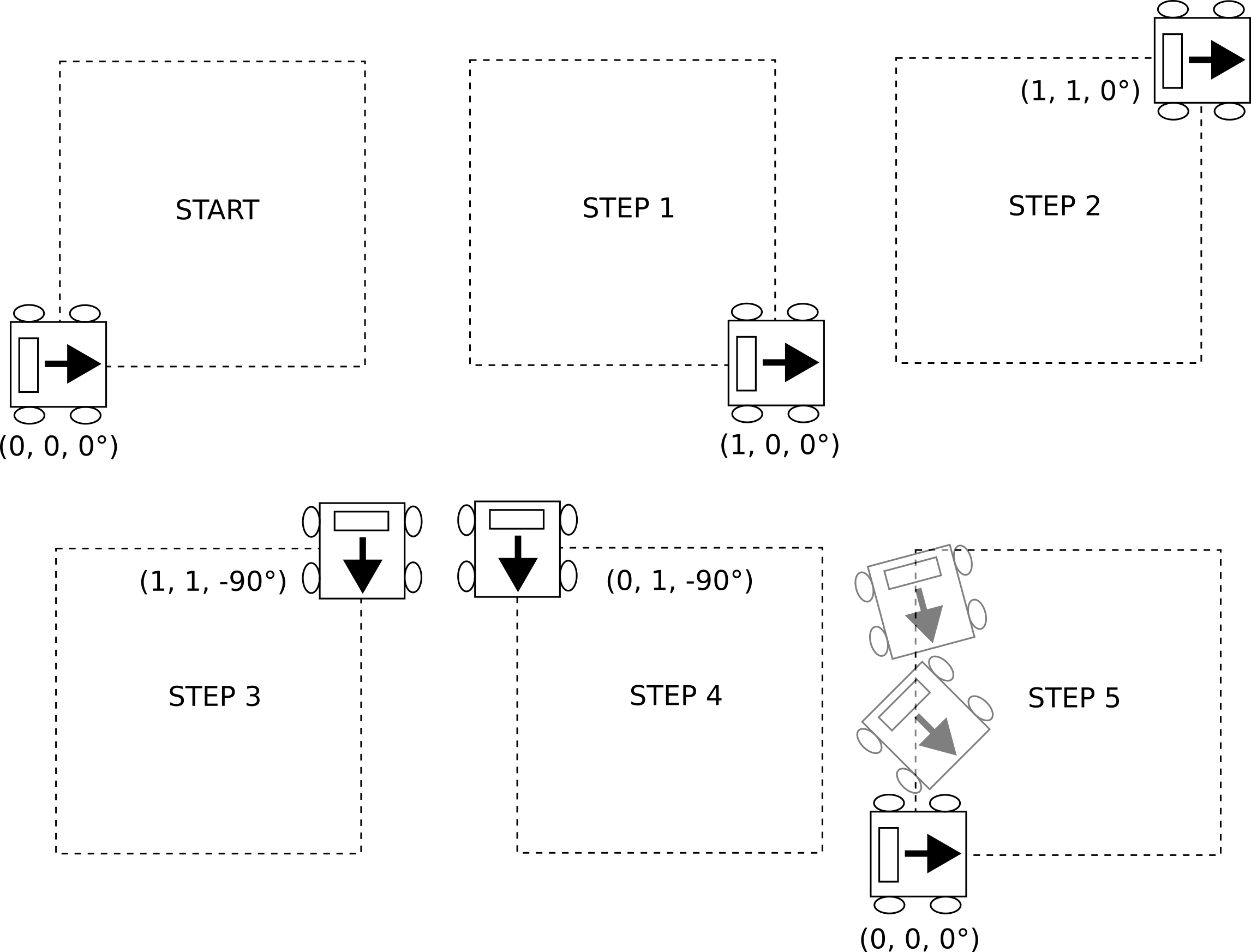

Figure 1 Square Movement Pattern

Figure 1 Square Movement Pattern

Start:

  1. Move from (0, 0, 0°) to (1, 0, 0°) facing the direction of travel; then
  2. Move from (1, 0, 0°) to (1, 1, 0°) without turning, so the robot is facing the outside of the square; then
  3. Turn from (1, 1, 0°) to (1, 1, -90°) to face into the square.
  4. Move from (1, 1, -90°) to (0, 1, -90°) facing the inside of the square.
  5. Move from (0, 1, -90°) to (0, 0, 0°) by rotating the robot while traveling.

Repeat this 2 times after a start command (such as a keyboard input) is given.

For example: after launching the JetAuto in Gazebo, when you run rosrun lab4_jetauto_control jetauto_control, it will ask for input before performing the above action.

Hint: You can follow the same approach as Lab 3 by creating a new package called lab4_jetauto_control in your ros_ws.

    catkin_create_pkg lab4_jetauto_control rospy geometry_msgs

Refer to the teleop_key_control.py controller you used in lab4 on how to publish to the JetAuto nodes.

Assessment Questions

  1. What command did you use to launch the JetAuto robot in Gazebo?
  2. Which two other launch files were called when you launched worlds.launch? Hint: Inspect the launch files in jetauto_ws/src/jetauto_simulation/jetauto_gazebo/launch.
  3. Describe the process of setting up the ROS workspace and creating the package.
  4. How do you estimate that the robot moved roughly 1 meter in each of the steps?
  5. What challenges did you face with making the robot move in a straight line while turning, and how did you overcome them?

Submission

  1. A link to your project folder (e.g., on GitHub (private) or Google Drive) containing all the necessary files and code.
  2. A video showing your code running in Gazebo and the robot moving.
  3. A text file containing the answers to the questions for every group member.

Late Submission Penalty

  1. A 25% reduction from the full mark will be applied for every 24 hours the submission is late after the deadline.
