Lab 7: Navigation

The move_base package is the central node of the ROS Navigation Stack, serving as the primary interface for point-to-point autonomous mobile robot navigation. By exposing a ROS action server, it accepts high-level goal poses and orchestrates the complex interaction between a global planner, which calculates the optimal macroscopic path to the destination, and a local planner, which generates the immediate kinematic velocity commands required to follow that path while dynamically avoiding real-time obstacles. To achieve this, it maintains both global and local costmaps that continuously aggregate sensor data to map environmental traversability and keep the robot safe. Furthermore, move_base features a robust state machine with built-in recovery behaviors, such as clearing costmaps or executing in-place rotations, allowing the robot to autonomously untangle itself from challenging situations when it becomes temporarily stuck or blocked.

Procedures

Navigation using `move_base`

In Lab 6, you created a map using the lidar and the gmapping SLAM algorithm. Now, we'll try to use that map for navigation.
Download the map of a small room from here, then unzip it locally. You should find a room_map.pgm and room_map.yaml. The .pgm file is the actual grid map, and the .yaml file provides the specifications for the map file.
Copy and paste the map files into the jetauto_slam/maps directory on the robot:

~/jetauto_ws/src/jetauto_slam/maps/

This is the default map directory used by the SLAM and navigation scripts.
Open a new terminal on the robot and run the following.

Stop the App service:
```
sudo systemctl stop start_app_node.service
```
Launch the motor controller node:
```
roslaunch jetauto_controller jetauto_controller.launch
```
Then start the navigation stack with the room map that you copied over:
```
roslaunch jetauto_navigation navigation.launch map:=room_map
```
To view the map on RViz, open a new terminal and run:
```
roslaunch jetauto_navigation rviz_navigation.launch
```
You can run RViz from your local computer if you have the ROS network sharing set up. In general, all RViz and robot control commands can be run locally on your computer instead of using the remote desktop if you have the ROS network sharing set up.
Once the RViz navigation window is up, you can use the 2D Pose Estimate, 2D Nav Goal, and Publish Point to manually navigate the robot.
- 2D Pose Estimate is used to set the initial position of JetAuto.
- 2D Nav Goal is used to set a target point.
- Publish Point is used to set multiple target points.
Try navigating the robot by providing it an initial pose estimate and setting nav goal.
Before moving to the next step, try moving the robot manually using the teleop package (the keyboard controller you created previous from lab 4 or project 3) to see how the robot use its lidar to localize itself in the map. You can also try to move the robot around and see how it reacts to obstacles in the environment. Try to understand how the robot is using the map and its sensors to navigate. You'll notice it take some time for the robot to localize itself.
Next, we'll try using a script for navigation instead of manually setting a goal in RViz. Open a new terminal, run rostopic list, and find the /jetauto_1/move_base_simple/goal topic. If jetauto_1 is not in the topic path, adjust the publisher path in the code below accordingly.

Create a new workspace or use one of your previous workspaces (not jetauto_ws) and create a file named waypoint_navigation.py in the scripts directory of a new or existing package.

The following will be your starter code for navigation. Once the navigation stack is running from the navigation.launch command from a previous step, you can run the following code, and the robot will navigate to waypoint 1 in the room map.

#!/usr/bin/env python3
import math
import rospy
import numpy as np
import jetauto_sdk.common as common
from move_base_msgs.msg import MoveBaseActionResult
from geometry_msgs.msg import PoseStamped
from visualization_msgs.msg import Marker, MarkerArray

# Define your array of waypoints here: (x, y, orientation_in_degrees)
waypoints = [
    (-0.825, 0.2, 0.0),
]

current_wp_index = 0
markerArray = MarkerArray()

def set_current_waypoint():
    global current_wp_index, markerArray

    if current_wp_index >= len(waypoints):
        rospy.loginfo("=====================================================")
        rospy.loginfo("STATUS UPDATE: All waypoints reached!")
        rospy.loginfo("=====================================================")
        return

    target_x, target_y, target_yaw = waypoints[current_wp_index]
    rospy.loginfo(f"STATUS UPDATE: Setting goal for Waypoint {current_wp_index + 1}/{len(waypoints)} -> x: {target_x}, y: {target_y}, yaw: {target_yaw}")

    # Clear previous markers
    marker_Array = MarkerArray()
    marker = Marker()
    marker.header.frame_id = map_frame
    marker.action = Marker.DELETEALL
    marker_Array.markers.append(marker)
    mark_pub.publish(marker_Array)

    # Create Pose
    pose = PoseStamped()
    pose.header.frame_id = map_frame
    pose.header.stamp = rospy.Time.now()

    q = common.rpy2qua(0.0, 0.0, math.radians(target_yaw))
    pose.pose.position.x = target_x
    pose.pose.position.y = target_y
    pose.pose.orientation = q

    # Set up the visual marker (flag) in RViz
    marker = Marker()
    marker.header.frame_id = map_frame
    marker.type = marker.MESH_RESOURCE
    marker.mesh_resource = "package://rviz_plugin/media/flag.dae"
    marker.action = marker.ADD
    marker.scale.x = 0.08
    marker.scale.y = 0.08
    marker.scale.z = 0.2

    # Randomize marker color
    color = list(np.random.choice(range(256), size=3))
    marker.color.a = 1
    marker.color.r = color[0] / 255.0
    marker.color.g = color[1] / 255.0
    marker.color.b = color[2] / 255.0

    marker.pose.position.x = pose.pose.position.x
    marker.pose.position.y = pose.pose.position.y
    marker.pose.orientation = pose.pose.orientation

    markerArray.markers.clear()
    markerArray.markers.append(marker)

    # Publish marker and navigation goal
    mark_pub.publish(markerArray)
    goal_pub.publish(pose)
    rospy.loginfo(f"STATUS UPDATE: Robot is now moving to Waypoint {current_wp_index + 1}...")

def status_callback(msg):
    global current_wp_index

    status = msg.status.status

    # Status 3 means the goal was reached successfully
    if status == 3:
        rospy.loginfo(f'STATUS UPDATE: Waypoint {current_wp_index + 1} reached successfully.')
        current_wp_index += 1

        if current_wp_index < len(waypoints):
            rospy.loginfo("STATUS UPDATE: Preparing for the next waypoint in 2 seconds...")
            rospy.sleep(2.0)
            set_current_waypoint()
        else:
            set_current_waypoint() # This will trigger the "Navigation complete" block

    # Handle failure states
    elif status == 4:
        rospy.logwarn(f'STATUS UPDATE: Waypoint {current_wp_index + 1} was aborted by move_base. Stopping sequence.')
    elif status == 5:
        rospy.logwarn(f'STATUS UPDATE: Waypoint {current_wp_index + 1} was rejected by move_base. Stopping sequence.')
    elif status == 9:
        rospy.logwarn(f'STATUS UPDATE: Waypoint {current_wp_index + 1} was lost. Stopping sequence.')

if __name__ == '__main__':
    rospy.init_node('key_start_waypoint_nav', anonymous=True)

    map_frame = rospy.get_param('~map_frame', 'jetauto_1/map')
    move_base_result = rospy.get_param('~move_base_result', '/jetauto_1/move_base/result')

    goal_pub = rospy.Publisher('/jetauto_1/move_base_simple/goal', PoseStamped, queue_size=1)
    mark_pub = rospy.Publisher('jetauto_1/path_point', MarkerArray, queue_size=100)

    rospy.Subscriber(move_base_result, MoveBaseActionResult, status_callback)

    # Give a brief moment for publishers to register with the ROS Master
    rospy.sleep(0.5)

    rospy.loginfo("STATUS UPDATE: Node initialized and ready.")

    # Wait for the user to press Enter in the terminal
    input(">>> Press [ENTER] to begin the navigation sequence... <<<")

    rospy.loginfo("STATUS UPDATE: Starting waypoint sequence!")
    set_current_waypoint()

    try:
        rospy.spin()
    except Exception as e:
        rospy.logerr(str(e))

If your robot has good localization, it should start navigating to waypoint 1.

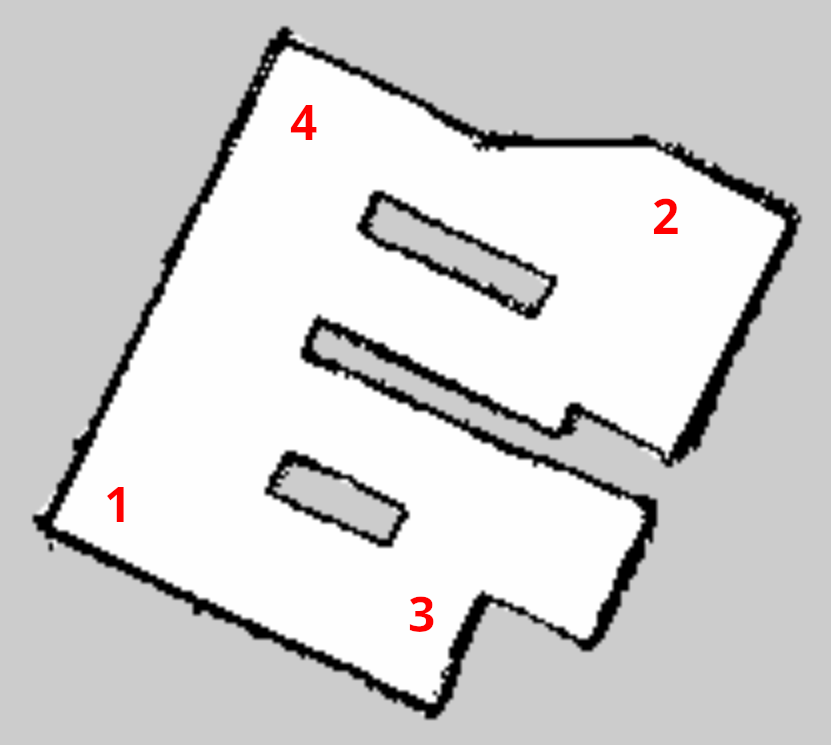

Figure 7.1 Small Room Map

Figure 7.1 Small Room Map

To add additional waypoints to your script, you'll need to inspect both room_map.pgm and room_map.yaml. The pixel location in the .pgm file needs to be translated to coordinates that ROS can understand using the origin and resolution data from the .yaml file. Open the .pgm file using an image editing tool such as GIMP and find the x-y pixel coordinates of waypoints 2, 3, and 4. Luckily, once you have found the coordinates of the waypoint, you can ask an AI to calculate the real x-y coordinates with respect to the origin and resolution of the map data.
Add the coordinates to your navigation script and see how the robot performs.
The Challenge: There's a very high chance that the robot will lose its localization. Make adjustments to the script and ask an AI as necessary to increase the reliability of the navigation (without installing any new packages on the robot).

Lab Tasks and Questions

Reliability navigate through all the waypoints of the small room for Project 5.
