Lab 1: Introduction to ROS and TurtleSim

Introduction

In this course, you'll be using the JetAuto Pro ROS Robot Car as the base platform for development. The JetAuto robot uses the NVIDIA Jetson Nano embedded computing board as its controller. The robot comes with various accessories and add-ons for robotics applications, all of which can be controlled using the Robot Operating System (ROS) as the core framework.

However, before working with the physical robot, we will first learn how to use ROS and Gazebo to simulate the robot and its environment. During the design phase of any robotics project, testing your code and robot functionality in a simulated environment is a crucial part of the development cycle. In some industrial settings (such as robots deployed in remote locations), physical access to the robot may be limited or impossible. In such cases, simulating the robot's actions and performance is the only way to ensure mission success.

What is ROS?

Per the ROS website:

The Robot Operating System (ROS) is a set of software libraries and tools that help you build robot applications. From drivers to state-of-the-art algorithms, and with powerful developer tools, ROS has what you need for your next robotics project. And it's all open source.

The above description may sound abstract, so let’s look at a practical example.

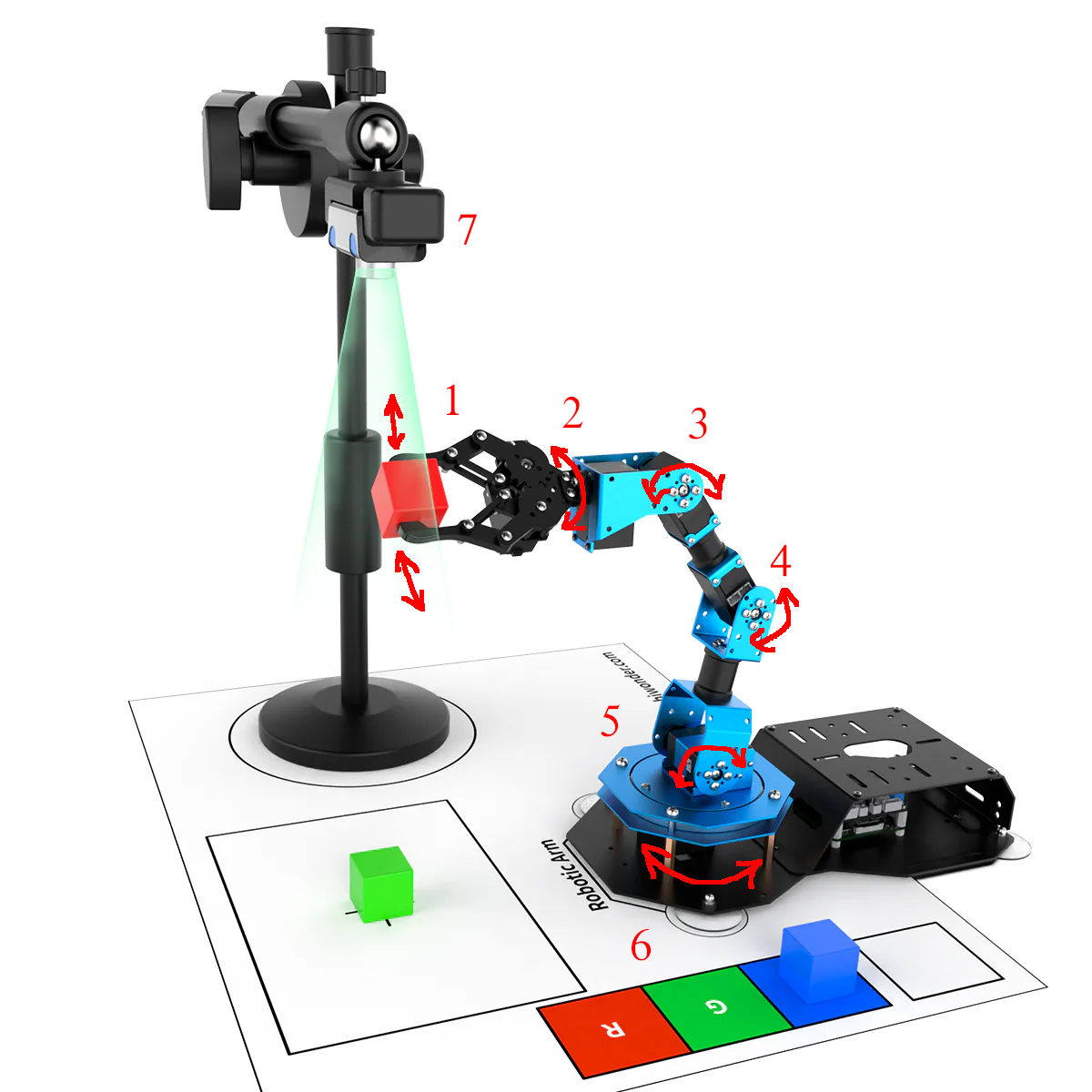

Figure 1.1 Robotics Arm

Figure 1.1 Robotic Arm (Source: Hiwonder)

A robotics system usually consists of various sensors, actuators, and controllers. The system in Figure 1.1 includes the following:

A servo gripper at the end of the arm.
A servo revolute joint that rotates the gripper.
A servo revolute joint for link 3–2.
A servo revolute joint for link 4–3.
A servo revolute joint for link 5–4.
A servo revolute joint that rotates the base.
A stationary camera supervising the workspace.

To pick up an object, the robot might:

Use the camera to determine the object's position.
Command the arm to move to the object's location.
Once in position, command the gripper to close around the object.

To achieve this, we break the process into smaller tasks. In robotics, this typically means having independent low-level control loops, each responsible for a single function:

A control loop for each joint that, given a position or velocity command, controls the power applied to the joint motor based on position sensor measurements.
A control loop for the gripper, which turns the gripper motor on and off and adjusts power to avoid crushing objects.
A sensing loop that reads images from the camera.

These low-level loops are then coordinated via a high-level supervisory control module:

Request an image from the camera sensing loop.
Use a vision algorithm to calculate the target object's location.
Calculate joint angles to move the arm to the location.
Send commands to the joint control loops.
Signal the gripper control loop to close.

An important feature of this architecture is modularity; the supervisor need not understand the implementation of any control loop. It communicates with each via simple control messages. This abstraction makes it easier to reuse code across platforms.

In ROS, each control loop is implemented as a node — a software process performing a specific task. Nodes communicate by publishing and subscribing to topics or using services.

Nodes can be written in many languages (including Python and C++), and ROS handles data conversion and message passing seamlessly.

We can visualize this system using a computation graph:

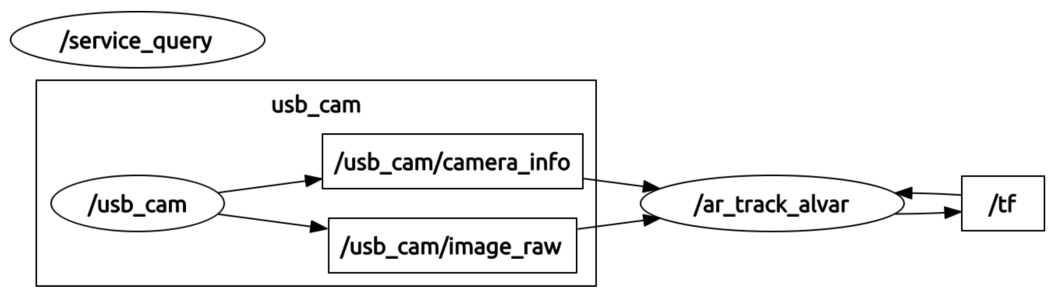

Figure 1.2 Example computation graph

Figure 1.2 Example computation graph

Nodes are shown as ovals (e.g., /usb_cam or /ar_track_alvar).
Topics are shown as rectangles (e.g., /usb_cam/camera_info, /usb_cam/image_raw).
Arrows show the direction of data flow between nodes and topics. For example, /usb_cam publishes to /usb_cam/camera_info and /usb_cam/image_raw, which are subscribed to by /ar_track_alvar.
Services, not shown here, are represented by dotted arrows.

Procedures

Ubuntu Installation

For this course, we'll use Ubuntu 18.04 LTS (Bionic Beaver) as our development OS. If you're using Windows, macOS, or another version of Linux, ensure Ubuntu 18.04 is running on a virtual machine, as this matches the OS on the JetAuto platform.

Install Ubuntu 18.04 on your computer or virtual machine (VirtualBox is recommended as it's a free VM software).
- OS Image: ubuntu-18.04.6-desktop-amd64.iso from the Ubuntu 18.04.6 LTS Release
ARM-based processor such as Apple M-series

If you are using a computer with an ARM-based processor, you'll need to use the ubuntu-18.04.6-server-arm64.iso ARMv8 server image from the Ubuntu 18.04.6 LTS Server Release and then manually add a desktop interface to the OS.

Info

On Windows, some students have reported success using wsl to run Ubuntu and ROS.
- Allocate at least 4 CPU cores, 4 GB RAM, and 20 GB of storage to emulate a Jetson Nano
- Use the username: jetauto to maintain code compatibility
Warning

Using jetauto as the user on your Ubuntu 18.04 virtual machine is important as it will ensure file path consistency when we transfer files between our computer and the robot.

You may also refer to this Installation Video as a guide.

Add jetauto User as Sudoer and Install Desktop GUI

Run in the Ubuntu 18 Machine
Depending on how the Ubuntu OS was installed, your active user jetauto may not have sudoer permissions. If that's the case, you'll need to switch to the root user and add jetauto to the sudo group.

Open a terminal and switch to the root user:
```
su root
```
Change the jetauto user into the sudo group:
```
usermod -a -G sudo jetauto
```
Log out, then log back in (or restart) to the jetauto user.

You can restart using the power button within the VM or:
```
reboot
```
After the system starts up again, you may now verify if you have sudo privileges:
```
sudo -v
```
If it gives you a permission error, that means you are not a sudoer yet. Repeat step 1.
Now that you are a sudoer, let's perform a system update and upgrade:
```
sudo apt update && sudo apt upgrade
```
Warning

DO NOT upgrade to Ubuntu 20 or higher when prompted — we need Ubuntu 18.
For Ubuntu 18 Server Image without Desktop Interface

You'll need to install a desktop interface!
1. If you didn't install the desktop version of Ubuntu, install the Ubuntu GNOME desktop (or similar) interface:
```
sudo apt install ubuntu-gnome-desktop
```
  After the installation is complete, restart the system:
```
reboot
```
  The Ubuntu GNOME desktop should run after the system restarts.
2. Next, ensure you can open a terminal from the GUI. If the terminal fails to start, go to "Settings" and change the language to "English (CA)" and save. You may switch it back afterward. This addresses a bug with a missing attribute in the Ubuntu desktop.
ROS Installation

Run in the Ubuntu 18 Machine

Set up your computer to accept software from packages.ros.org.

sudo sh -c 'echo "deb http://packages.ros.org/ros/ubuntu $(lsb_release -sc) main" > /etc/apt/sources.list.d/ros-latest.list'

Set up your keys.

If you haven't already installed curl:

sudo apt install curl

Add the key:

curl -s https://raw.githubusercontent.com/ros/rosdistro/master/ros.asc | sudo apt-key add -

Now, make sure your system package index is up-to-date:
```
sudo apt update
```
Next, we'll install the full desktop version of ROS with rqt, rviz, robot-generic libraries, 2D/3D simulators and 2D/3D perception, etc.:
```
sudo apt install ros-melodic-desktop-full
```
Note

Later, if you need to install other ROS packages, you can use the following command: sudo apt install ros-melodic-<PACKAGE> e.g. sudo apt install ros-melodic-slam-gmapping. To find available packages, use: apt search ros-melodic
Since we want our terminal to load the ROS source every time it starts, add the source command to .bashrc so the ROS environment variables are automatically added to your bash session every time a new shell is launched.

Only execute once:
```
echo "source /opt/ros/melodic/setup.bash" >> ~/.bashrc
```
Verify ~/.bashrc

To verify if the above code has been added to ~/.bashrc, use nano, or any editor to open ~/.bashrc in your user's home directory.
```
nano ~/.bashrc
```
Ctrl + X to exit.
Execute the command for the current terminal as well to take effect:
```
source /opt/ros/melodic/setup.bash
```
After ROS installation and setting up .bashrc, we'll also want to install a few tools to help build ROS packages.

To install this tool and other dependencies for building ROS packages, run:
```
sudo apt install python-rosdep python-rosinstall python-rosinstall-generator python-wstool build-essential
```
Before you can use many ROS tools, you will need to initialize rosdep. rosdep enables you to easily install system dependencies for sources you want to compile and is required to run some core components in ROS. With the following, you can initialize rosdep.
```
sudo rosdep init
```
Since Melodic is no longer a supported distro, we'll run rosdep update and explicitly specify melodic.
```
rosdep update --rosdistro=melodic
```
Reference

You may reference the official ROS Melodic Installation instructions.

Turtlesim Test

Turtlesim is a lightweight simulator for learning ROS. It illustrates what ROS does at the most basic level to give you an idea of what you will do with a real robot or a robot simulation later on.

Using roscore

roscore is the first command you should run when using ROS. It starts the ROS master node, the centralized server for managing nodes, topics, services, communication, and more. It is typically the main entry point and the first step for running any ROS system.

In a terminal, run:

roscore

You will see something similar to:

... logging to ~/.ros/log/9cf88ce4-b14d-11df-8a75-00251148e8cf/roslaunch-machine_name-13039.log
Checking log directory for disk usage. This may take awhile.
Press Ctrl-C to interrupt
Done checking log file disk usage. Usage is <1GB.

started roslaunch server http://machine_name:33919/
ros_comm version 1.4.7

SUMMARY
======

PARAMETERS
* /rosversion
* /rosdistro

NODES

auto-starting new master
process[master]: started with pid [13054]
ROS_MASTER_URI=http://machine_name:11311/

setting /run_id to 9cf88ce4-b14d-11df-8a75-00251148e8cf
process[rosout-1]: started with pid [13067]
started core service [/rosout]

Warning

Do not close this terminal as it is the ROS server.

Using `rosrun`

The command rosrun allows you to use the package name to directly run a node within a package (without having to know the package path). Usage: rosrun [package_name] [node_name]. Now, we want to run the turtlesim_node in the turtlesim package.

In a new terminal:
```
rosrun turtlesim turtlesim_node
```
The simulator window should appear, with a random turtle in the center.

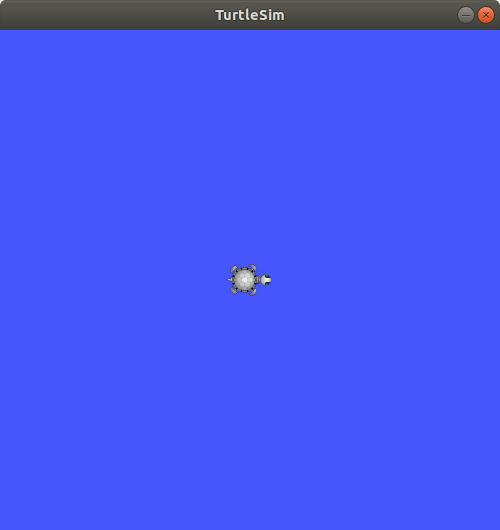

Figure 1.3 TurtleSim

Warning

Do not close this terminal and the TurtleSim window as it is the simulation environment.
Open a new terminal to run a new node to control the turtle in the turtlesim_node node:
```
rosrun turtlesim turtle_teleop_key
```
Info

At this point you should have four terminals/windows open:
- a terminal running roscore
- a terminal running turtlesim_node
- a terminal running turtle_teleop_key
- the "TurtleSim window"
Arrange the terminals/windows so that you can see the TurtleSim window but also have the terminal running turtle_teleop_key active so that you can control the turtle in turtlesim.
Ensuring the terminal running turtle_teleop_key is active, use the arrow keys on your keyboard to control the turtle. The turtle should move around the screen, using its attached “pen” to draw its path.

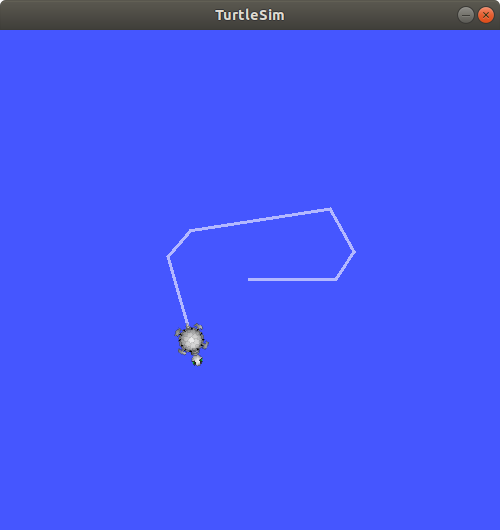

Figure 1.4 TurtleSim

Using rqt

rqt is a graphical user interface (GUI) tool for ROS. Everything done in rqt can be done on the command line, but rqt provides a more user-friendly way to manipulate ROS elements.
Open a new terminal and run rqt.
```
rqt
```
When running rqt for the first time, the window will be blank. No worries; just select Plugins > Services > Service Caller from the menu bar at the top.

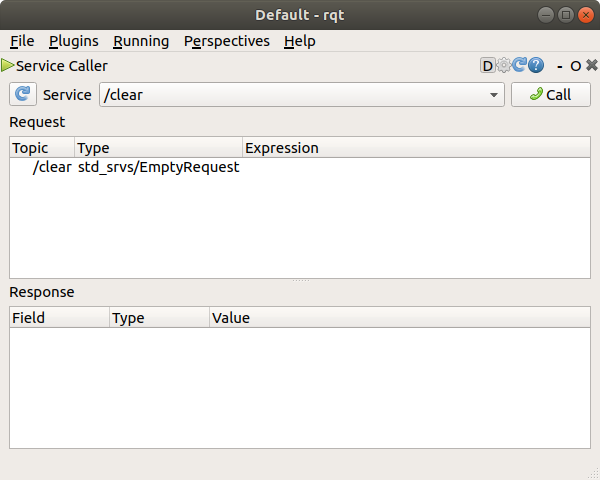

Figure 1.5 rqt
Use the refresh button to the left of the Service dropdown list to ensure all the services of your turtlesim node are available.
Click on the Service dropdown list to see turtlesim’s services and select the /spawn service to spawn another turtle.

Give the new turtle a unique name, like turtle2, by double-clicking between the empty single quotes in the Expression column. You can see that this expression corresponds to the value of name and is of type string.

Next, enter some valid coordinates at which to spawn the new turtle, like x = 1.0 and y = 1.0.

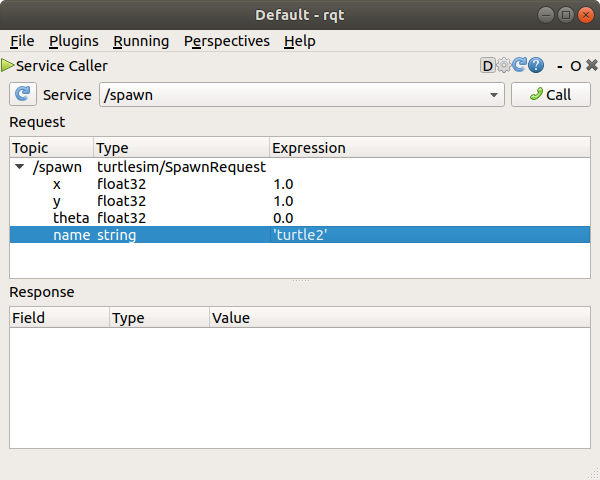

Figure 1.6 rqt spawn

If you try to spawn a new turtle with the same name as an existing turtle, you will get an error message in the terminal running turtlesim_node.
Call the spawn service by clicking the Call button on the upper right side of the rqt window. You should now see a new turtle (with a random design) spawn at the coordinates you input for x and y.
Refresh the service list in rqt and you will now see services related to the new turtle, /turtle2/..., in addition to /turtle1/....
Next, we'll give turtle1 a unique pen using the /set_pen service and have turtle1 draw with a distinct red line by changing the value of r to 255, and the value of width to 5. Don’t forget to call the service after updating the values.

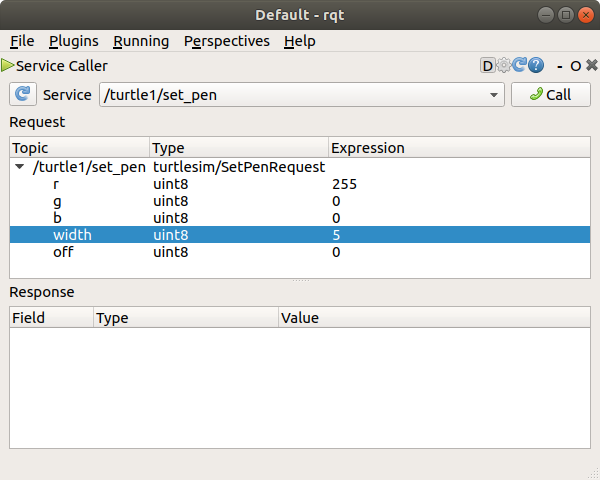

Figure 1.7 rqt set_pen
Return to the terminal where turtle_teleop_key is running and press the arrow keys; you will see turtle1’s pen has changed.

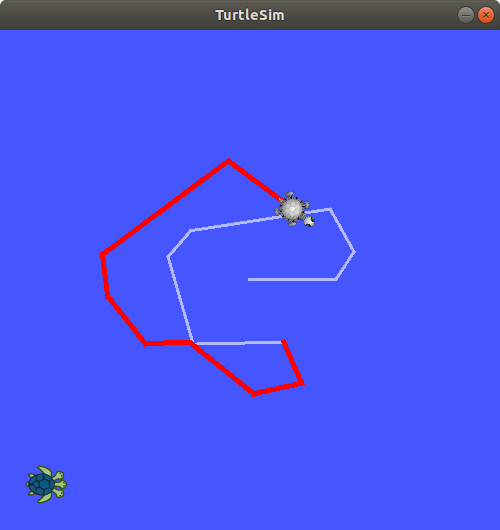

Figure 1.8 TurtleSim Turtles

Remapping turtle_teleop_key
To control turtle2, you need a second teleop node. However, if you try to run the same command as before, you will notice only turtle1 is controlled. The way to change this behavior is by remapping the cmd_vel topic and providing a new name for the node.

In a new terminal, run:
```
rosrun turtlesim turtle_teleop_key turtle1/cmd_vel:=turtle2/cmd_vel __name:=teleop_turtle2
```
Now, you can move turtle2 when this new terminal is active, and turtle1 when the old terminal running turtle_teleop_key is active.

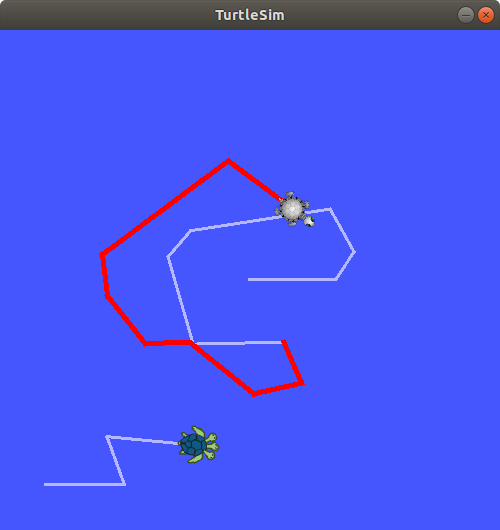

Figure 1.9 TurtleSim Turtles

Lab Exercise

Use rqt to create a third turtle that you can control in turtlesim with a green (g = 255) pen line color.

Reference

ROS Tutorials
EECS 106A Labs
